Brain Transplant

01 / 01

Motherboard Integration

The Constraint: Incorporating a standard ATX motherboard into a proprietary DSP host environment.

The Solution: Creating a secure, vibration-isolated "Engine Bay" for the Kontron 986LCD-M.

  • IO Shield: Designed a custom IO shield (P/N 9420-58318-00) to bridge the gap between commercial connectors and the industrial chassis.
  • Shock Mounting: Implemented a suspended tray design to protect the BGA components from low-frequency touring rumble (Truck rumble).
  • Cable Routing: Defined strict "Keep Out" zones for cabling to prevent airflow blockage.

Cosmetic Shell

01 / 01

Industrial Design

The Goal: Make a stamped steel box look like a premium $20k console.

The Solution: A multi-piece ABS plastic trim kit that "wrapped" the industrial core.

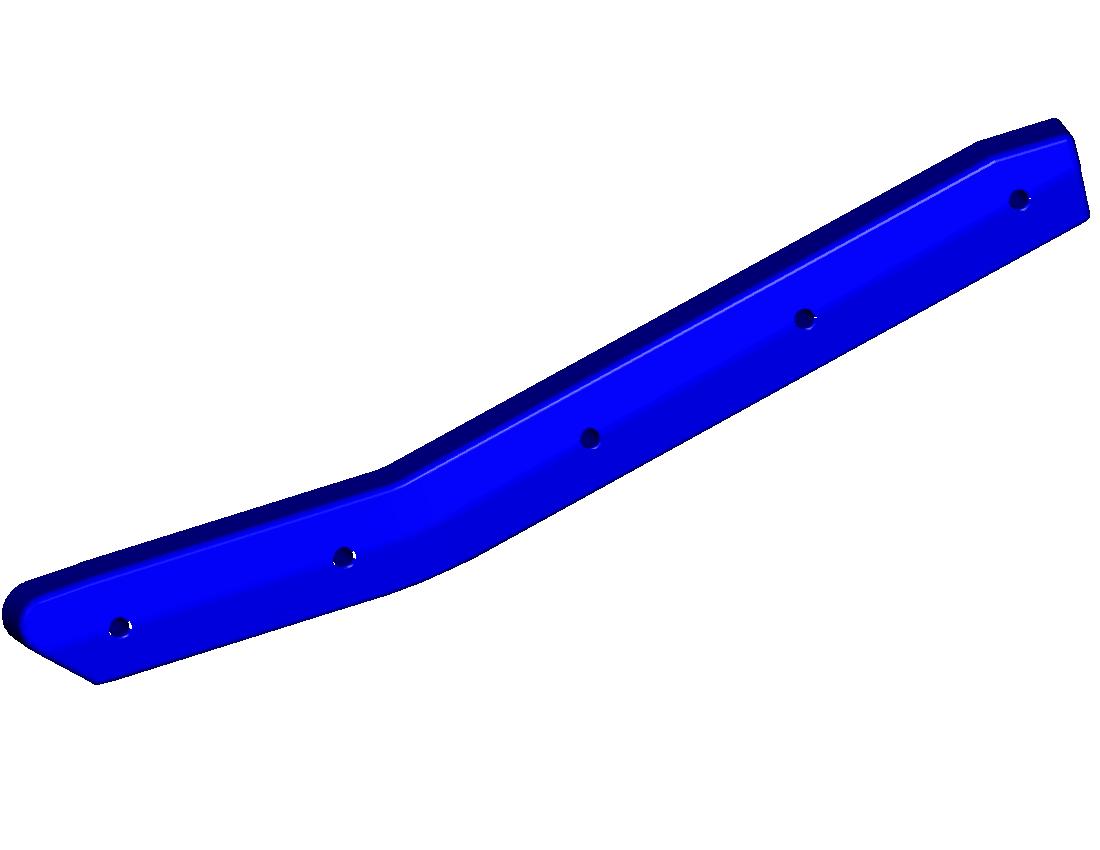

  • Fader Bank: The fader bezel (P/N 9440-58842-00) provided a smooth, ergonomic resting surface for the engineer's hands.

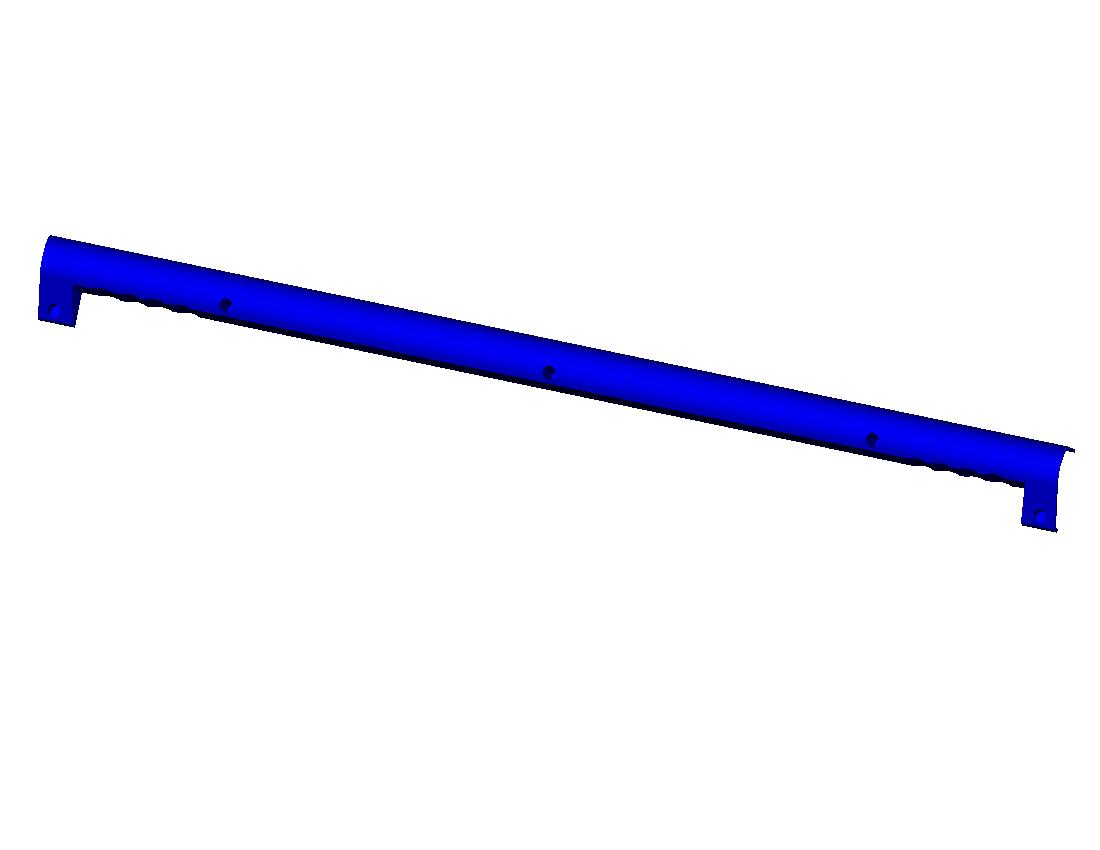

  • Master Section: The center section (P/N 9440-58843-00) unified the screen and master faders.
  • Texture: Utilized Mold-Tech MT-11010 (Fine Texture) to match the powder-coated steel, creating a "Seamless" visual transition between plastic and metal.

Meltdown Mitigation

01 / 01

Thermal Architecture

The Constraint: Condensing a 1000W system into a unibody chassis without external cooling towers.

The Solution: I utilized the chassis itself as the heatsink. By coupling the PSU and CPU thermal loads directly to the heavy-gauge steel frame, we dissipated heat via conduction rather than relying solely on convection.

  • CFD Analysis: Validated airflow paths to ensure zero "dead zones" around the DSP cards.

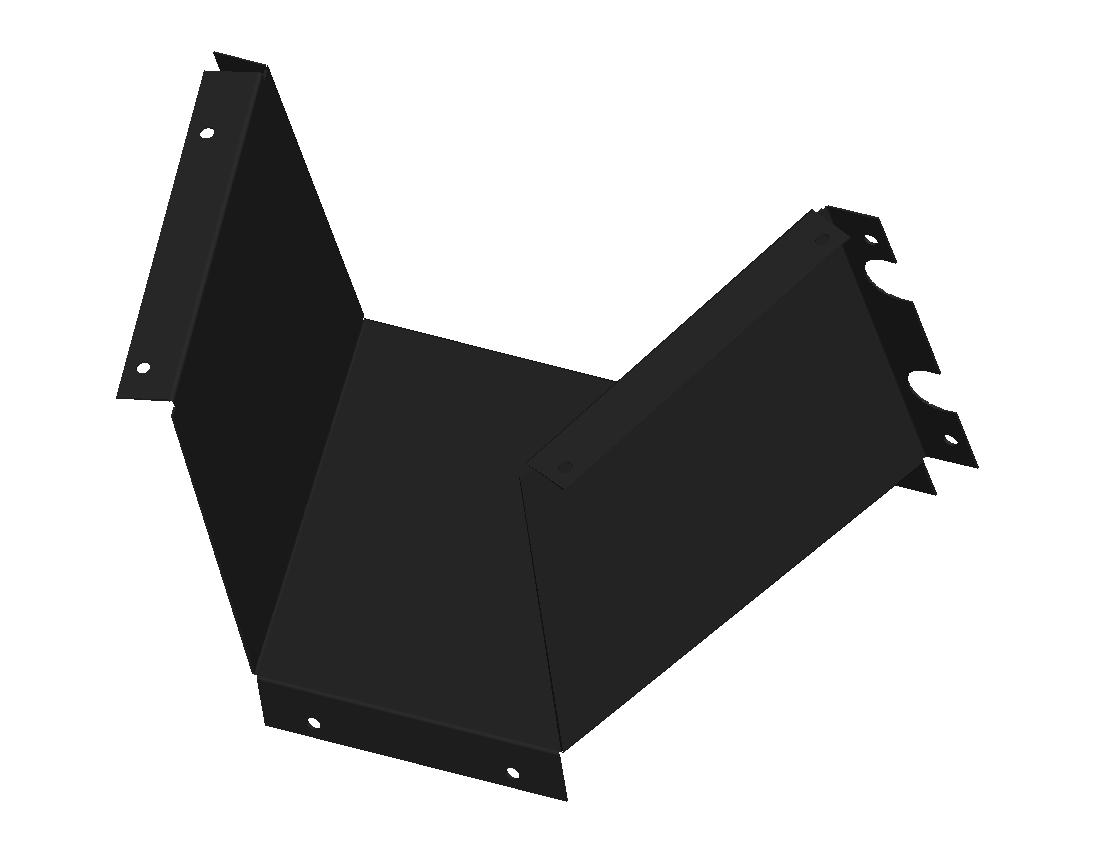

  • Fan Duct: Designed a custom injection-molded duct (P/N 9440-58856-00) to channel high-velocity air directly over the heatsinks while maintaining acoustic silence (<35dBA).

Origami Spine

01 / 01

Structural Monocoque

The Challenge: Standard "Box and Lid" construction would be too heavy and expensive for the target BOM.

The Solution: I implemented a Sheet Metal Monocoque design ("The Origami Spine").

  • Jetcrown Stamping: moved from low-volume CNC bending to high-volume progressive die stamping.
  • Dimensional Integrity: The folded steel created a rigid spine that eliminated the need for a separate internal frame, reducing part count by 40%.
  • Interlock: The structure featured self-aligning tabs that allowed the PCB trays to "snap" into place before fastening, drastically reducing assembly time.

SC48 (Lux / Capaldi) Forensic Report

I. Project Summary

  • Role: Lead Mechanical Engineer / Industrial Designer.
  • Mandate: Architect the “Embedded Live Sound” console — a DSP engine and host PC (Kontron 986LCD-M Mini-ITX) integrated into a touring-grade chassis under a strict sub-$15,000 COGS cap, with no rack and no visible PC.
  • Core Achievement: Eliminated a 100% show-stopping thermal shutdown through a 16-configuration Design of Experiments and a 3U-to-4U re-architecture, while a folded-steel structure replaced banned aluminum extrusions and held mechanical materials to 20.33% of COGS.

II. The Anatomy of Failure

1. Thermal Crisis: The 75°C Kill Event

  • Trigger: During “Capaldi FOH” temperature-chamber stress testing, the embedded CPU breached 75°C and the BIOS protection tripped — the telemetry recorded the verbatim failure: “CPU temperature is 75C, system shutdowned.” Root cause: the rack-less 3U chassis and a strict “cooling from the sides only” industrial-design mandate created a heat trap. The Kontron board’s own specification demands a 0–60°C ambient envelope; the dense cabling and PCB stack generated impedance the fans could not overcome. In a live-sound environment this failure mode means silence mid-performance.
  • Intervention: Executed a 16-configuration Design of Experiments matrix to empirically map the safe operating area: chassis volume (3U vs. 4U) against fan velocity (5.6V, 7V, 8.5V, 12V; 80 mm vs. 120 mm arrays). Retrofitted flow-guidance hardware — injection-molded fan ducts (P/N 9420-58856-00), die-cut LDPE “CPU shields” walling off dead-air zones, a sheet-metal fan plenum (P/N 9420-58496-00) equalizing side-intake pressure — plus a PSU bracket modification that coupled the supply’s heat into the chassis steel and a harness re-route that cleared the intake vectors.
  • Result: The data proved 3U thermally non-viable. The winning configuration — 4U chassis, three 80 mm fans hard-wired at 12V — stabilized the critical left-side internal temperature rise at 22.6°C, roughly 13.8°C of headroom over the failed configurations. Dropping to 8.5V eroded the margin to 24.3°C; 12V was not a preference, it was the requirement.

2. Structural Crisis: The No-Extrusion Mandate

  • Trigger: The thermal fix demanded a taller 4U chassis, which normally requires aluminum extrusions for touring rigidity — and management had issued a binary directive for the budget: “There will be no extrusions.” On the flagship Profile console, extrusions alone had consumed 6.8% of COGS.
  • Intervention: Engineered the “4U Rake Back I-Beam” (P/N 9420-58317-00) — the Origami Spine. A complex series of precise bends in standard flat steel created a hollow I-beam profile that mimics the moment of inertia of a solid extrusion, spanning the console’s width without sagging. Validated under a CNC-first strategy: prototype runs on CNC folding before committing capital to progressive stamping dies, with the top-level assembly (9100-58341-00) tracked against both CNC-MOQ and hard-tooled pricing.
  • Result: Total mechanical materials (sheet metal + plastics) locked at 20.33% of COGS — $561.46 per unit — supporting the sub-$15,000 system target with touring-grade rigidity and zero extrusions.

3. Integration Crisis: The Brain Transplant

  • Trigger: A consumer Mini-ITX motherboard cannot survive touring: its connectors are rated for low cycle counts, a tripped cable can rip a port off the PCB, and an exposed PC backplane destroys the pro-audio appliance illusion.

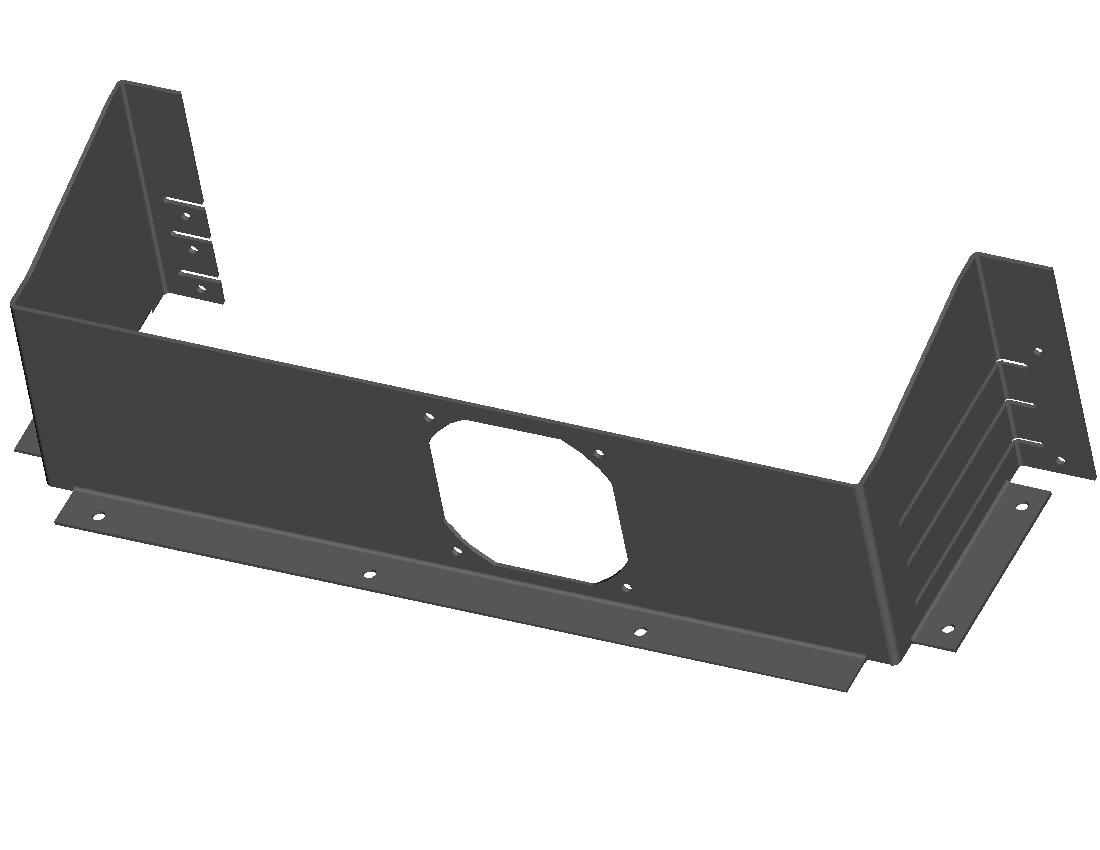

  • Intervention: Buried the motherboard deep in the chassis on a custom PCI bracket (P/N 9420-58318-00) and bridged it to the exterior with umbilical extension harnesses — DVI, USB, and Ethernet runs terminating in ruggedized panel-mount connectors on dedicated steel I/O plates (IO Left 9420-58326-00, IO Right 9420-58327-00). Insertion loads transfer to heavy-gauge steel, never to solder joints.
  • Result: Zero mechanical I/O failures in touring stress tests, a field-replaceable “engine block” motherboard, and a unified console I/O wall indistinguishable from the flagship family look.

4. Cost Crisis: The Family Mold Arbitrage

  • Trigger: An entry-level console that had to carry flagship Profile aesthetics — Class-A curved plastics on a budget that could not absorb duplicate tooling.
  • Intervention: Directed a family-mold strategy at the vendor: left and right side caps (P/N 9440-58842-00) shot from a single tool base. The BOM records the receipts — Left Side Cap tooling $36,000, Right Side Cap tooling $0.00. Mold-Tech fine texture matched the plastics to the powder-coated steel for a seamless transition.
  • Result: Roughly $36,000 in duplicate NRE avoided, leaving budget headroom for the steel spine, and “Profile-level” cosmetics delivered at Lux-level capital.

III. Governance & Rhythm

  • The Pulse: War-room cadence. The DOE data forced a fundamental mid-project re-architecture from 3U to 4U, and the CNC-first hedge kept tooling capital off the table until the thermal solution was proven.
  • The Artifacts: 26 released sheet-metal fabrication drawings authored solo (SC48_REV-1_shtmtl-parts.pdf); 17 PCB Design Control Documents freezing board outlines, mounting holes, and keep-outs before layout — from the 537 × 368 mm Main Left control surface (9150-58331-00) down to L-shaped video interface boards threading internal obstructions; the thermal test log; the COGS rollup.

IV. Quantified Impact

  • Eliminated a 100% show-stopping thermal failure mode by identifying the 75°C CPU shutdown threshold through forensic log analysis.
  • Stabilized internal temperature rise at 22.6°C — 13.8°C of headroom — via the 4U side-intake architecture.
  • Executed a 16-configuration Design of Experiments isolating chassis volume and fan-velocity variables.
  • Held mechanical material cost to 20.33% of COGS ($561.46/unit) under the sub-$15,000 system target.
  • Avoided ~$36,000 in duplicate tooling through the family-mold strategy.
  • Eliminated the extrusion cost penalty that had consumed 6.8% of COGS on the Profile console.
  • Authored 26 sheet-metal fabrication drawings and 17 PCB Design Control Documents as a solo mechanical mandate.
  • Integrated a full Mini-ITX embedded PC into a touring-grade chassis with zero motherboard I/O failures in stress testing.

V. Source Trail

The claims above rest on the project’s primary evidence archive — thermal test logs, fabrication drawings, and COGS rollups — compiled through the NotebookLM forensic registry:

  • SC48_lux_thermal-testing.pdf — the smoking gun: thermal-runaway logs including the verbatim shutdown event (log row 275) and the 22.6°C stabilization data.
  • SC48_REV-1_shtmtl-parts.pdf — the 26 released sheet-metal fabrication drawings.
  • BOM_GoGs_etc.pdf — COGS rollup; family-mold line items ($36,000 / $0.00) and the $561.46 mechanical unit cost.
  • 9420-58317-00 — fabrication drawing, 4U Rake Back I-Beam (the Origami Spine).
  • 9420-58856-00 — fan duct used in the thermal fix.
  • 9420-58318-00 — custom PCI bracket for the motherboard mount.
  • 9420-58326-00 / 9420-58327-00 — IO Left / IO Right panel-mount bracket drawings.
  • 9100-58341-00 — Lux console top-level assembly.
